Vishay Semiconductor Opto Division
PHOTOCOUPLER TRIAC 600V 6DIP

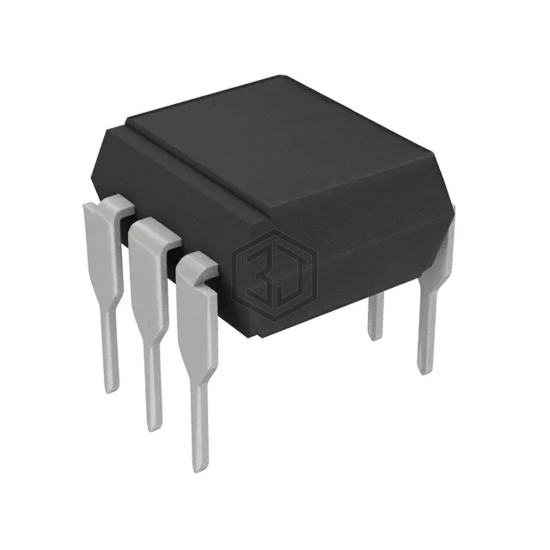

BRT22-H is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. PHOTOCOUPLER TRIAC 600V 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.16V, package / case 6-DIP (0.300", 7.62mm).
In Stock: 8,824
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Current - On State (It (RMS)) (Max) | 300 mA |
| Current - Hold (Ih) | 500µA |
| Turn On Time | 35µs |
| Voltage - Forward (Vf) (Typ) | 1.16V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | CQC, UL |
Submit your RFQ for BRT22-H and get a quote within 24 hours.
