Vishay General Semiconductor - Diodes Division

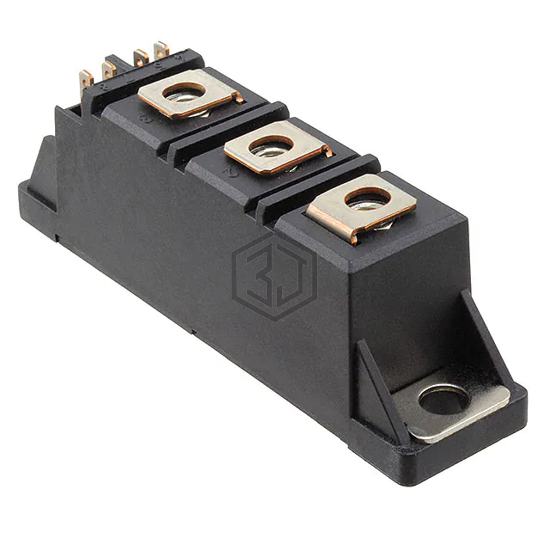

MODULE THY 570A SMAGN-A-PAK
VS-VSKT570-16PBF is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. MODULE THY 570A SMAGN-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 135°C (TJ), package / case 3-SuperMAGN-A-PAK™.
In Stock: 3,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| Structure | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Off State | 1.6 kV |
| Current - On State (It (AV)) (Max) | 570 A |
| Current - On State (It (RMS)) (Max) | 894 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 18000A, 18800A |
| Current - Hold (Ih) (Max) | 500 mA |
| Operating Temperature | -40°C ~ 135°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | 3-SuperMAGN-A-PAK™ |
Submit your RFQ for VS-VSKT570-16PBF and get a quote within 24 hours.
