Vishay General Semiconductor - Diodes Division

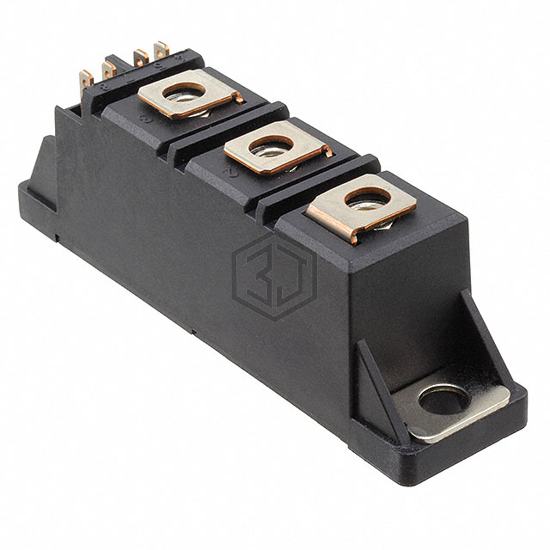

MODULE DIODE 500A SMAGN-A-PAK
VS-VSKH500-12PBF is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. MODULE DIODE 500A SMAGN-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 130°C (TJ), package / case 3-SuperMAGN-A-PAK™.
In Stock: 8,036
| Attribute | Value |
|---|---|
| Product Status | Active |
| Structure | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Voltage - Off State | 1.2 kV |
| Current - On State (It (AV)) (Max) | 500 A |
| Current - On State (It (RMS)) (Max) | 785 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 17800A, 18700A |
| Current - Hold (Ih) (Max) | 500 mA |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | 3-SuperMAGN-A-PAK™ |
Submit your RFQ for VS-VSKH500-12PBF and get a quote within 24 hours.
