Vishay General Semiconductor - Diodes Division
SCR 1.2KV 135A TO209AC

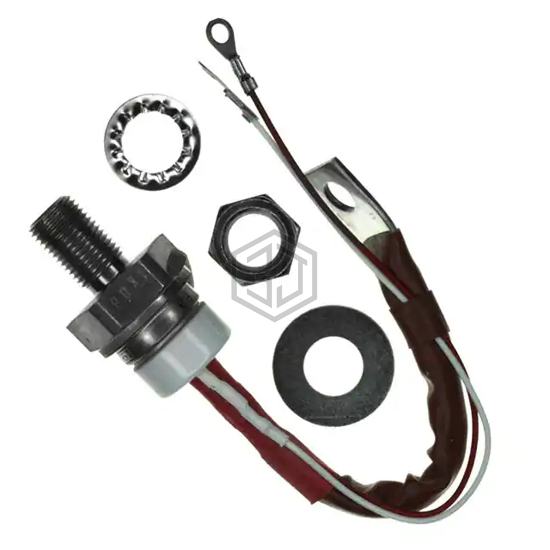

VS-ST083S12PFK0 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 1.2KV 135A TO209AC. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-209AC, TO-94-4, Stud.
In Stock: 6,044
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Voltage - On State (Vtm) (Max) | 2.15 V |
| Current - On State (It (AV)) (Max) | 85 A |
| Current - On State (It (RMS)) (Max) | 135 A |
| Current - Hold (Ih) (Max) | 600 mA |
| Current - Off State (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2450A, 2560A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | TO-209AC, TO-94-4, Stud |
| Supplier Device Package | TO-209AC (TO-94) |
Submit your RFQ for VS-ST083S12PFK0 and get a quote within 24 hours.
