Vishay General Semiconductor - Diodes Division

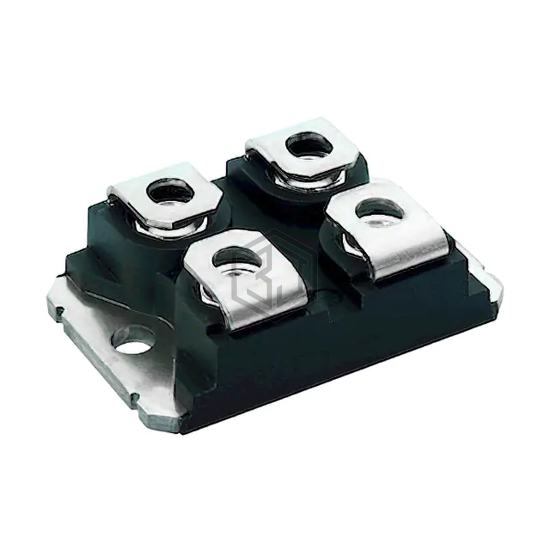

SOT-227 - LOW SIDE CHOPPER IGBT
VS-GT55LA120UX is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. SOT-227 - LOW SIDE CHOPPER IGBT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 68 A.
In Stock: 1,572
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Single Chopper |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 68 A |
| Power - Max | 291 W |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | - |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
Submit your RFQ for VS-GT55LA120UX and get a quote within 24 hours.
