Vishay General Semiconductor - Diodes Division
IGBT MOD 600V 580A INT-A-PAK

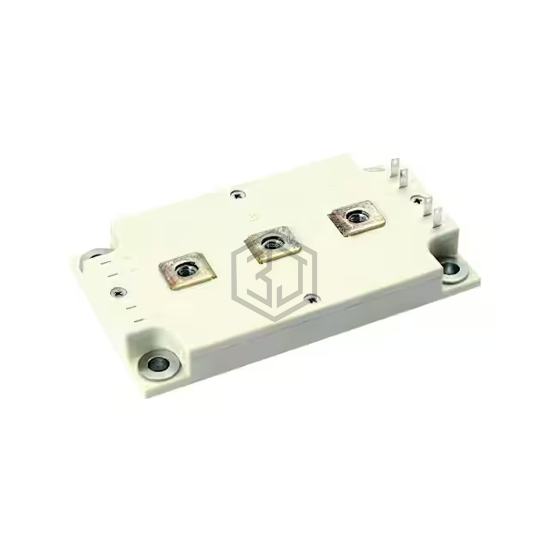

VS-GT300TD60S is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 580A INT-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 466 A.
In Stock: 5,614
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 466 A |
| Power - Max | 882 W |
| Vce(on) (Max) @ Vge, Ic | 1.47V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 200 µA |
| Input Capacitance (Cies) @ Vce | 24.2 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | INT-A-PAK |
Submit your RFQ for VS-GT300TD60S and get a quote within 24 hours.
