Vishay General Semiconductor - Diodes Division

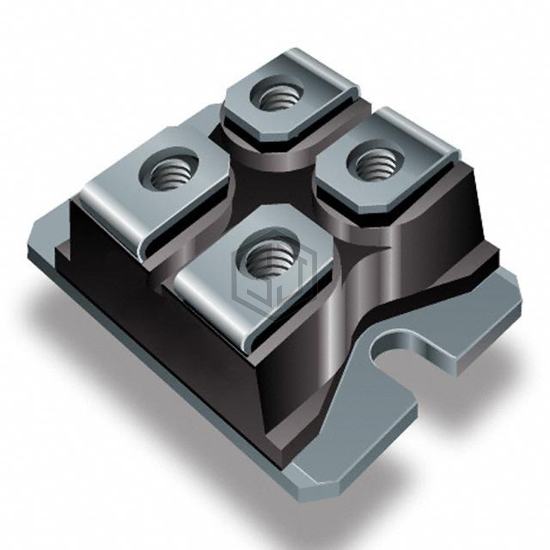

IGBT MOD 650V 167A 577W SOT227
VS-GT120DA65U is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 650V 167A 577W SOT227. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 167 A.
In Stock: 8,206
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench |
| Configuration | Single Switch |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 167 A |
| Power - Max | 577 W |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | 6.6 nF @ 30 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
Submit your RFQ for VS-GT120DA65U and get a quote within 24 hours.
