Vishay General Semiconductor - Diodes Division
IGBT MOD 1200V 134A 463W SOT227

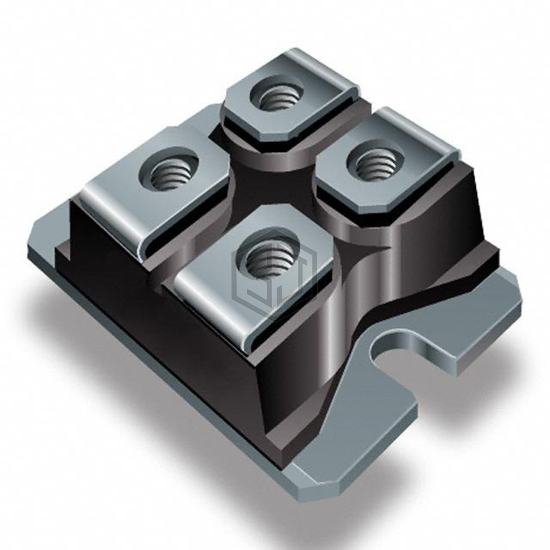

VS-GT100NA120UX is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 1200V 134A 463W SOT227. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 134 A.
In Stock: 2,848
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 134 A |
| Power - Max | 463 W |
| Vce(on) (Max) @ Vge, Ic | 2.85V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | - |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
Submit your RFQ for VS-GT100NA120UX and get a quote within 24 hours.
