Vishay General Semiconductor - Diodes Division

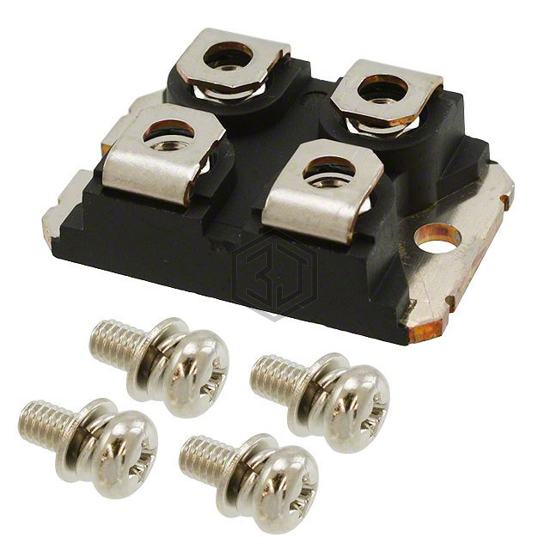

MOSFET N-CH 100V 435A SOT227
VS-FC420SA10 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay General Semiconductor - Diodes Division. MOSFET N-CH 100V 435A SOT227. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC.
In Stock: 1,072
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 435A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.15mOhm @ 200A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 750µA |
| Gate Charge (Qg) (Max) @ Vgs | 375 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 17300 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 652W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227 |
| Package / Case | SOT-227-4, miniBLOC |
Submit your RFQ for VS-FC420SA10 and get a quote within 24 hours.
