Vishay General Semiconductor - Diodes Division

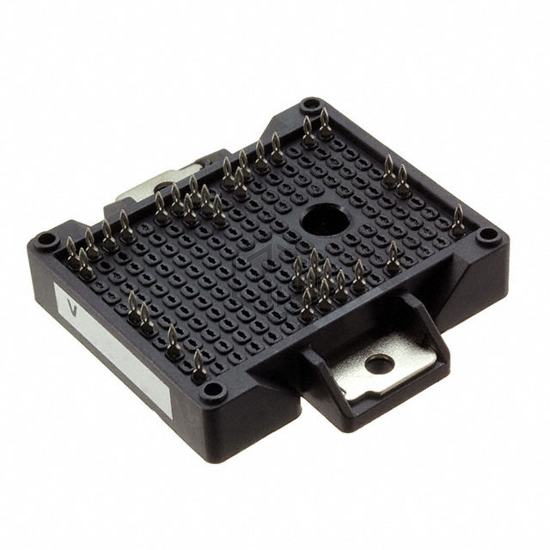

IGBT MOD 600V 109A EMIPAK-2B
VS-ETF075Y60U is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 109A EMIPAK-2B. Key specifications: mounting type Chassis Mount, operating temperature 175°C (TJ), package / case EMIPAK-2B, current - collector (ic) (max) 100 A.
In Stock: 5,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench |
| Configuration | Three Level Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 100 A |
| Power - Max | 294 W |
| Vce(on) (Max) @ Vge, Ic | 1.93V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 4.44 nF @ 30 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | EMIPAK-2B |
| Supplier Device Package | EMIPAK-2B |
Submit your RFQ for VS-ETF075Y60U and get a quote within 24 hours.
