Vishay General Semiconductor - Diodes Division

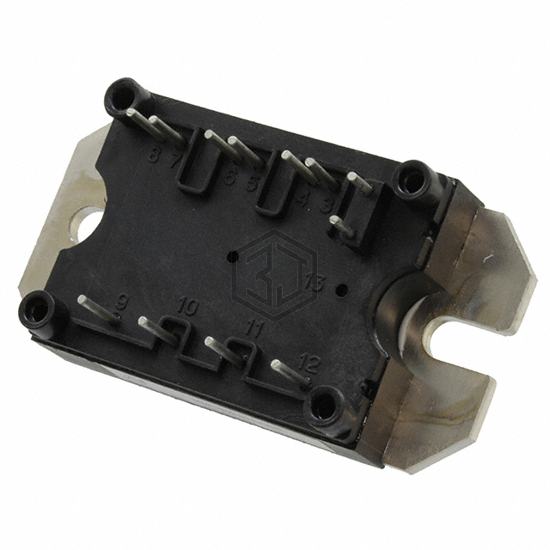

IGBT MODULE 600V 114A 658W MTP
VS-50MT060WHTAPBF is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MODULE 600V 114A 658W MTP. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case 12-MTP Module, current - collector (ic) (max) 114 A.
In Stock: 7,535
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 114 A |
| Power - Max | 658 W |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 400 µA |
| Input Capacitance (Cies) @ Vce | 7.1 nF @ 30 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | 12-MTP Module |
| Supplier Device Package | MTP |
Submit your RFQ for VS-50MT060WHTAPBF and get a quote within 24 hours.
