Vishay General Semiconductor - Diodes Division
MTP - HALF BRIDGE IGBT

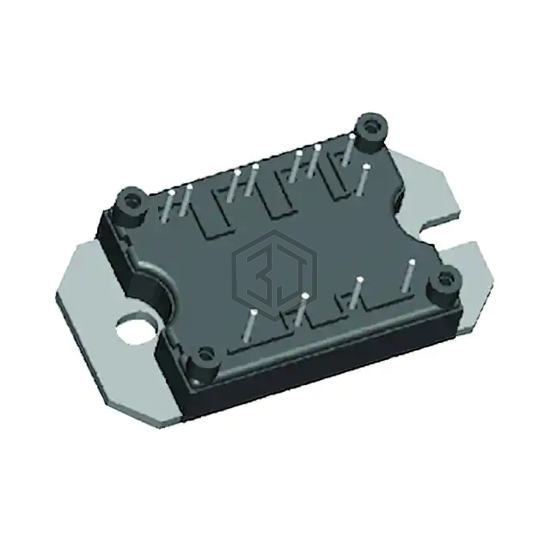

VS-40MT120PHAPBF is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. MTP - HALF BRIDGE IGBT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 12-MTP Module, current - collector (ic) (max) 75 A.
In Stock: 1,539
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Power - Max | 305 W |
| Vce(on) (Max) @ Vge, Ic | 2.65V @ 15V, 40A |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | 3.2 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 12-MTP Module |
| Supplier Device Package | 12-MTP |
Submit your RFQ for VS-40MT120PHAPBF and get a quote within 24 hours.
