Vishay General Semiconductor - Diodes Division
SCR 1.6KV 30A TO247AD

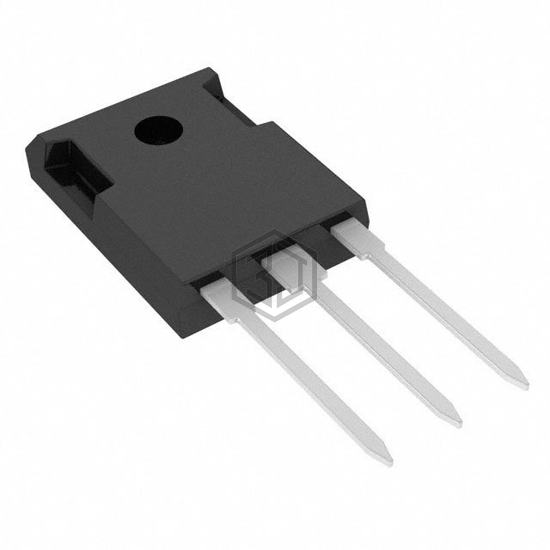

VS-30TPS16LHM3 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 1.6KV 30A TO247AD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-247-3.
In Stock: 7,365
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.6 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - Gate Trigger (Igt) (Max) | 45 mA |
| Voltage - On State (Vtm) (Max) | 1.3 V |
| Current - On State (It (AV)) (Max) | 20 A |
| Current - On State (It (RMS)) (Max) | 30 A |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Off State (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A @ 50Hz |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
Submit your RFQ for VS-30TPS16LHM3 and get a quote within 24 hours.
