Vishay General Semiconductor - Diodes Division
SCR 100V 35A TO208AA

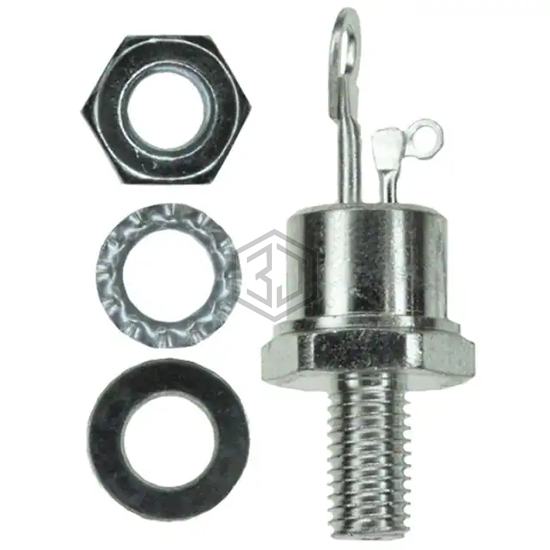

VS-22RIA10 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 100V 35A TO208AA. Key specifications: mounting type Chassis, Stud Mount, operating temperature -65°C ~ 125°C, package / case TO-208AA, TO-48-3, Stud.
In Stock: 2,763
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 100 V |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - Gate Trigger (Igt) (Max) | 60 mA |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - On State (It (AV)) (Max) | 22 A |
| Current - On State (It (RMS)) (Max) | 35 A |
| Current - Hold (Ih) (Max) | 130 mA |
| Current - Off State (Max) | 20 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A |
| SCR Type | Standard Recovery |
| Operating Temperature | -65°C ~ 125°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | TO-208AA, TO-48-3, Stud |
| Supplier Device Package | TO-208AA (TO-48) |
Submit your RFQ for VS-22RIA10 and get a quote within 24 hours.
