Vishay General Semiconductor - Diodes Division
12V;IR=0.1UA;IP=4.4A;P=W;CD=40PF

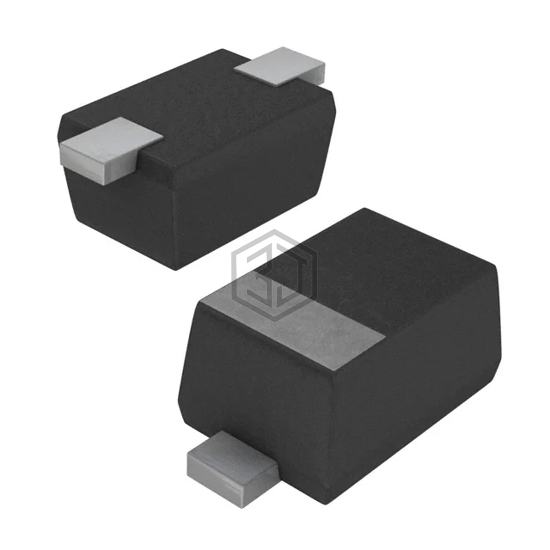

VESD12C1-HD1HG3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. 12V;IR=0.1UA;IP=4.4A;P=W;CD=40PF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 14.3V |
| Voltage - Clamping (Max) @ Ipp | 22.7V |
| Current - Peak Pulse (10/1000µs) | 4.4A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 33pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | DFN1006-2A |
Submit your RFQ for VESD12C1-HD1HG3-08 and get a quote within 24 hours.
