Vishay General Semiconductor - Diodes Division
TVS DIODE 8VWM 15.3VC SOT323

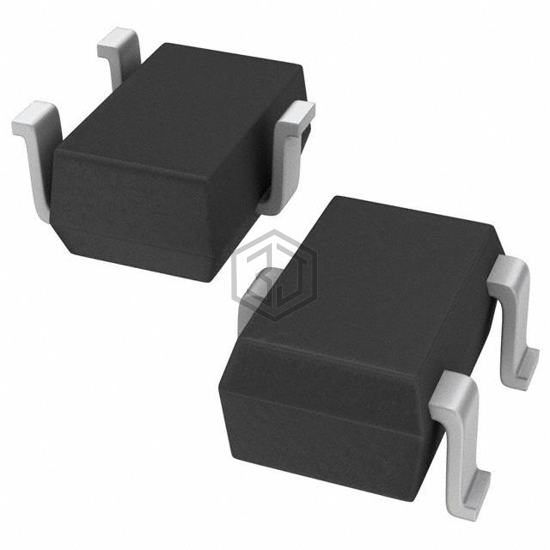

VESD08A2-03GHG3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 8VWM 15.3VC SOT323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.
In Stock: 2,919
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 2 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8V (Max) |
| Voltage - Breakdown (Min) | 9.5V |
| Voltage - Clamping (Max) @ Ipp | 15.3V |
| Current - Peak Pulse (10/1000µs) | 6.6A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 47pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
Submit your RFQ for VESD08A2-03GHG3-08 and get a quote within 24 hours.
