Vishay General Semiconductor - Diodes Division
TVS DIODE 5VWM 12VC LLP75-7L

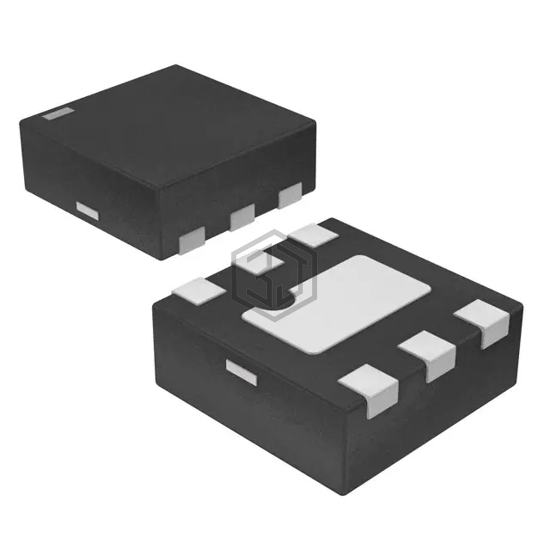

VESD05A6-HAF-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 12VC LLP75-7L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-UFDFN Exposed Pad.
In Stock: 38,002
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 6 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 60W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 40pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | LLP75-7L |
Submit your RFQ for VESD05A6-HAF-GS08 and get a quote within 24 hours.
