Vishay General Semiconductor - Diodes Division
TVS DIODE 7VWM 14VWM 2DFN

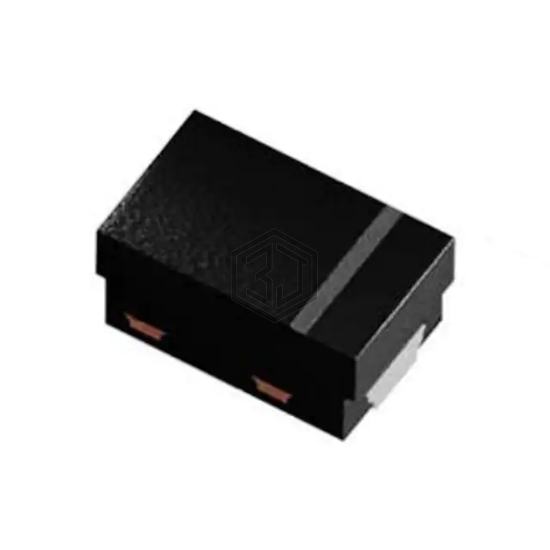

VCUT0714BHD1-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 7VWM 14VWM 2DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).
In Stock: 5,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 7V, 14V |
| Voltage - Breakdown (Min) | 7.3V, 14.5V |
| Voltage - Clamping (Max) @ Ipp | 15V, 30V |
| Current - Peak Pulse (10/1000µs) | 3.6A (8/20µs), 2A (8/20µs) |
| Power - Peak Pulse | 50W, 61W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 8pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | DFN1006-2A |
Submit your RFQ for VCUT0714BHD1-G3-08 and get a quote within 24 hours.
