Vishay General Semiconductor - Diodes Division
TVS DIODE 5VWM 13.4VC DO221AC

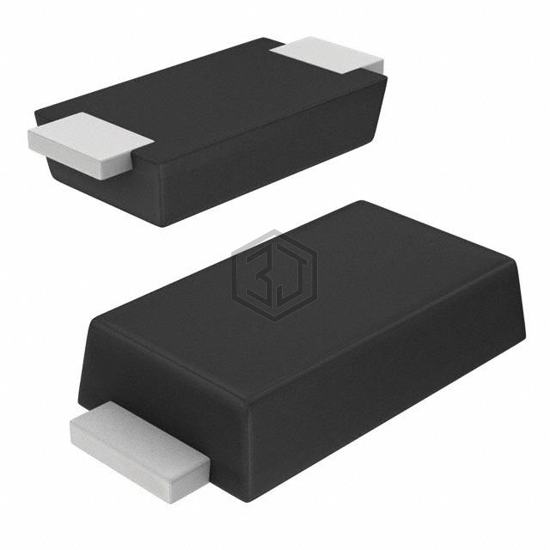

SMA6F5.0A-M3/6A is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 13.4VC DO221AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-221AC, SMA Flat Leads.
In Stock: 12,754
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 13.4V |
| Current - Peak Pulse (10/1000µs) | 298A (8/20µs) |
| Power - Peak Pulse | 4000W (4kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC (SlimSMA) |
Submit your RFQ for SMA6F5.0A-M3/6A and get a quote within 24 hours.
