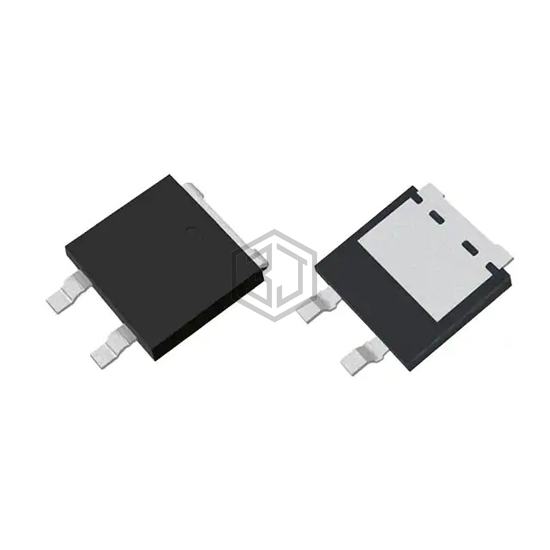

Vishay General Semiconductor - Diodes Division
1200V 30A SURFACE-MOUNT HIGH VOL
SE30DT12HM3/I is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. 1200V 30A SURFACE-MOUNT HIGH VOL. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab) Variant.
In Stock: 8,573
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 30A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.29 V @ 30 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3.4 µs |
| Current - Reverse Leakage @ Vr | 10 µA @ 1200 V |
| Capacitance @ Vr, F | 132pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab) Variant |
| Supplier Device Package | SMPD |
| Operating Temperature - Junction | -55°C ~ 175°C |
Submit your RFQ for SE30DT12HM3/I and get a quote within 24 hours.
