Vishay General Semiconductor - Diodes Division

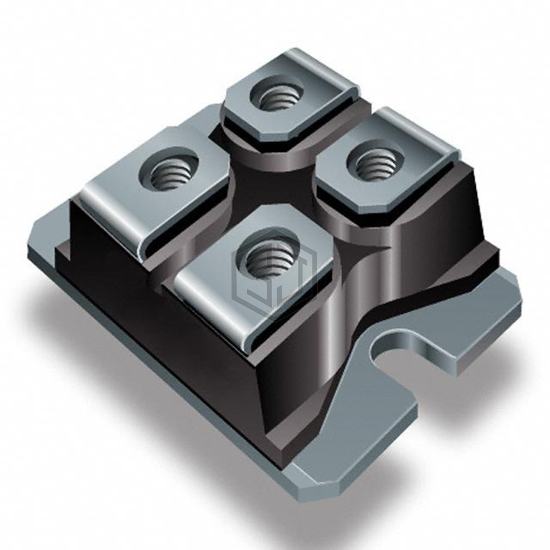

IGBT MOD 600V 200A 630W SOT227B
GA200SA60S is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 200A 630W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 200 A.
In Stock: 5,580
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 200 A |
| Power - Max | 630 W |
| Vce(on) (Max) @ Vge, Ic | 1.3V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 16.25 nF @ 30 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for GA200SA60S and get a quote within 24 hours.
