Vishay General Semiconductor - Diodes Division

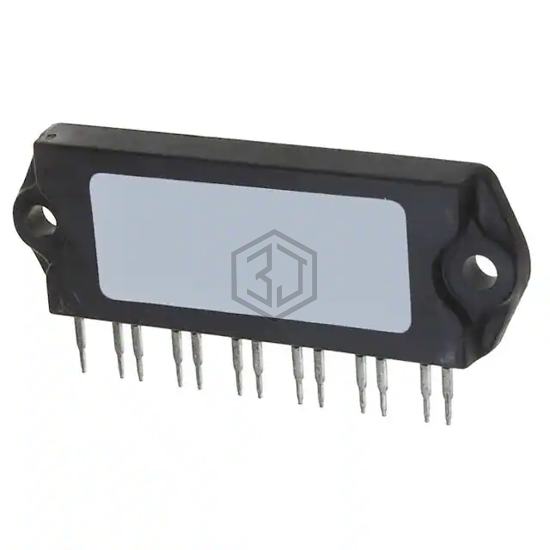

IGBT MODULE 600V 7.2A 23W IMS-2
CPV362M4U is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MODULE 600V 7.2A 23W IMS-2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 19-SIP (13 Leads), IMS-2, current - collector (ic) (max) 7.2 A.
In Stock: 1,974
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 7.2 A |
| Power - Max | 23 W |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 7.2A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 530 pF @ 30 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 19-SIP (13 Leads), IMS-2 |
| Supplier Device Package | IMS-2 |
Submit your RFQ for CPV362M4U and get a quote within 24 hours.
