RES 0.56 OHM 5% 1/10W 0603

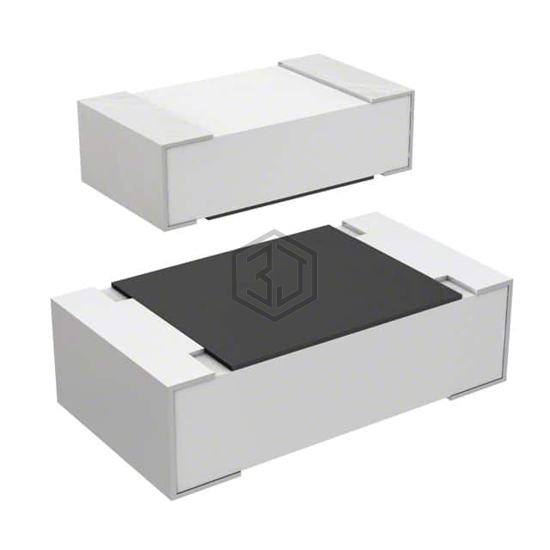

RCWL0603R560JQEA is a Chip Resistor - Surface Mount manufactured by Vishay Dale. RES 0.56 OHM 5% 1/10W 0603. Key specifications: operating temperature -55°C ~ 155°C, package / case 0603 (1608 Metric), size / dimension 0.061" L x 0.033" W (1.55mm x 0.85mm), ratings AEC-Q200.
In Stock: 5,666
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±400ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.061" L x 0.033" W (1.55mm x 0.85mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FRL0603JR560TS | Fosan | CHIP RESISTORS | 100% | View |
| RL0402FR-070R56L | YAGEO | RES 0.56 OHM 1% 1/16W 0402 | 76% | View |
| SR731JRTTDR560F | KOA Speer Electronics, Inc. | RES 560M OHM 1% 1/5W 0603 | 69% | View |
| RLC16KR560JTP | Kamaya Inc. | RES 0.56 OHM 1/4W 5% 0603 | 69% | View |
| SR732ARTTDR560F | KOA Speer Electronics, Inc. | RES 560M OHM 1% 1/3W 0805 | 66% | View |
| RS-06JP7--0R56 | Viking Tech | RES 560M OHM 5% 1/2W 1206 | 63% | View |
Submit your RFQ for RCWL0603R560JQEA and get a quote within 24 hours.
