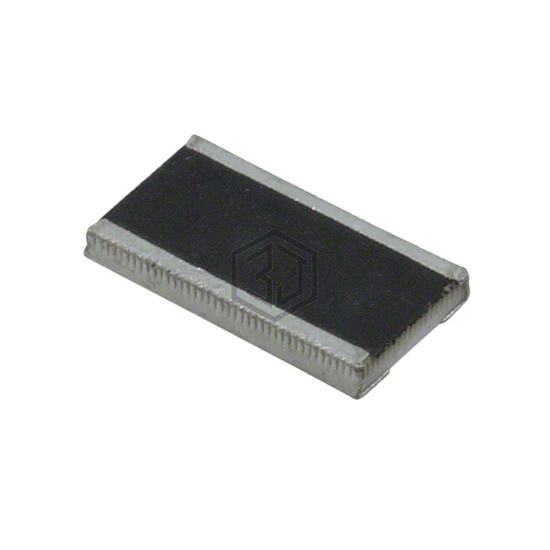

RES SMD 560 OHM 2W 2512 WIDE
RCL1225560RJNEG is a Chip Resistor - Surface Mount manufactured by Vishay Dale. RES SMD 560 OHM 2W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225, size / dimension 0.126" L x 0.248" W (3.20mm x 6.30mm), ratings AEC-Q200.
In Stock: 3,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.248" W (3.20mm x 6.30mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RCP0603W560RGTP | Vishay Dale | RES SMD 560 OHM 2% 1.5W 0603 | 80% | View |
| RCP0603W560RJEC | Vishay Dale | RES SMD 560 OHM 5% 1.5W 0603 | 80% | View |
| RCP0505B560RGED | Vishay Dale | RES SMD 560 OHM 2% 1.4W 0505 | 76% | View |
| AC1218FK-07560RL | YAGEO | RES SMD 560 OHM 1W 1812 WIDE | 69% | View |
| AF1210JR-07560RL | YAGEO | RES SMD 560 OHM 5% 1/2W 1210 | 69% | View |
| RCP2512W560RJEA | Vishay Dale | RES SMD 560 OHM 5% 3.5W 2512 | 68% | View |
Submit your RFQ for RCL1225560RJNEG and get a quote within 24 hours.
