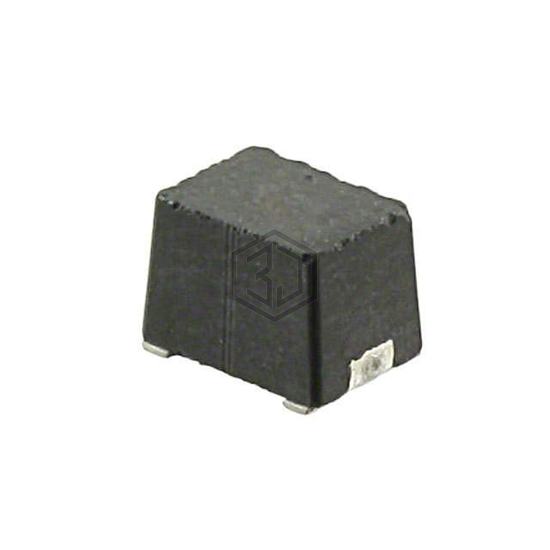

FIXED IND 1MH 66MA 16 OHM SMD
ISC1812ER102K is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1MH 66MA 16 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1812 (4532 Metric), current rating (amps) 66 mA.
In Stock: 1,848
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 66 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 16Ohm Max |
| Q @ Freq | 30 @ 252kHz |
| Frequency - Self Resonant | 2MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 252 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for ISC1812ER102K and get a quote within 24 hours.
