FIXED IND 1.5UH 178A 0.26MOHM TH

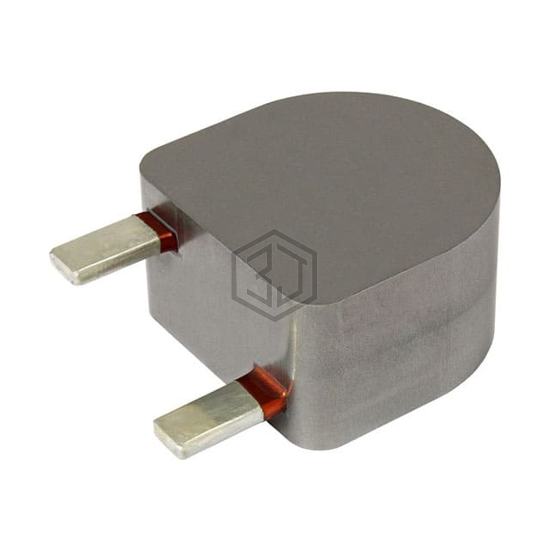

IHXL1500VZEB1R5M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1.5UH 178A 0.26MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 178 A.
In Stock: 83
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 178 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.26mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 500 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.500" L x 1.500" W (38.10mm x 38.10mm) |
| Height - Seated (Max) | 0.872" (22.15mm) |
Submit your RFQ for IHXL1500VZEB1R5M5A and get a quote within 24 hours.
