FIXED IND 4.7UH 44.5A 2 MOHM TH

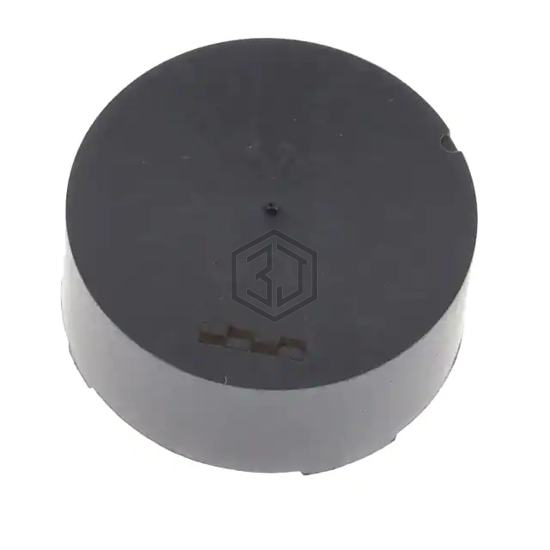

IHTH1125MZEB4R7M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 4.7UH 44.5A 2 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 44.5 A.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 44.5 A |
| Current - Saturation (Isat) | 62A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 11.36MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 1.179" Dia (29.95mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
Submit your RFQ for IHTH1125MZEB4R7M5A and get a quote within 24 hours.
