FIXED IND 4.7UH 7.4A 23 MOHM SMD

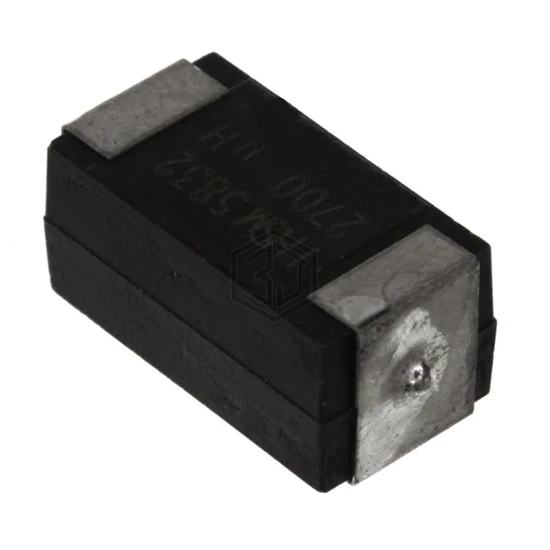

IHSM5832ER4R7L is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 4.7UH 7.4A 23 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.4 A.
In Stock: 986
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 7.4 A |
| Current - Saturation (Isat) | 2.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.640" L x 0.320" W (16.26mm x 8.13mm) |
| Height - Seated (Max) | 0.285" (7.24mm) |
Submit your RFQ for IHSM5832ER4R7L and get a quote within 24 hours.
