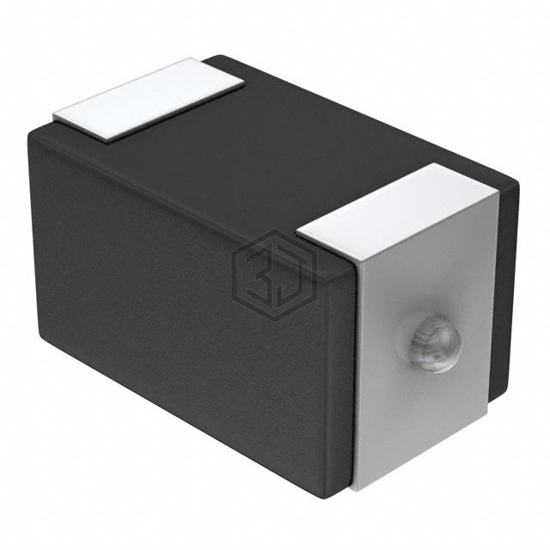

FIXED IND 4.7UH 2.17A 83MOHM SMD
IHSM3825ER4R7L is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 4.7UH 2.17A 83MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.17 A.
In Stock: 1,223
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 2.17 A |
| Current - Saturation (Isat) | 1.93A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 83mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.440" L x 0.250" W (11.18mm x 6.35mm) |
| Height - Seated (Max) | 0.225" (5.72mm) |
Submit your RFQ for IHSM3825ER4R7L and get a quote within 24 hours.
