FIXED IND 1UH 5.11A 15 MOHM SMD

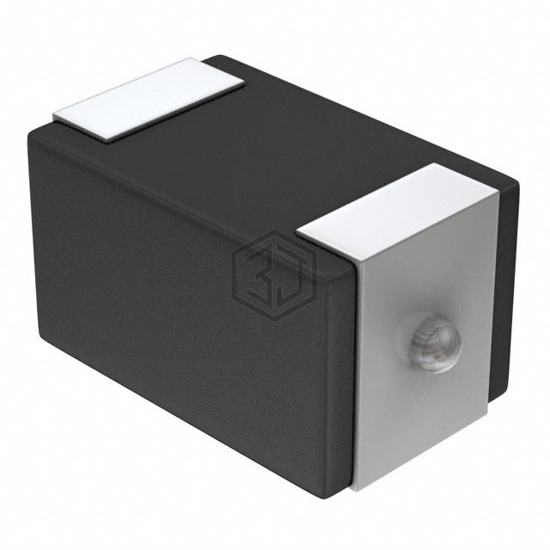

IHSM3825ER1R0L is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 5.11A 15 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.11 A.
In Stock: 750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 5.11 A |
| Current - Saturation (Isat) | 4.41A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.440" L x 0.250" W (11.18mm x 6.35mm) |
| Height - Seated (Max) | 0.225" (5.72mm) |
Submit your RFQ for IHSM3825ER1R0L and get a quote within 24 hours.
