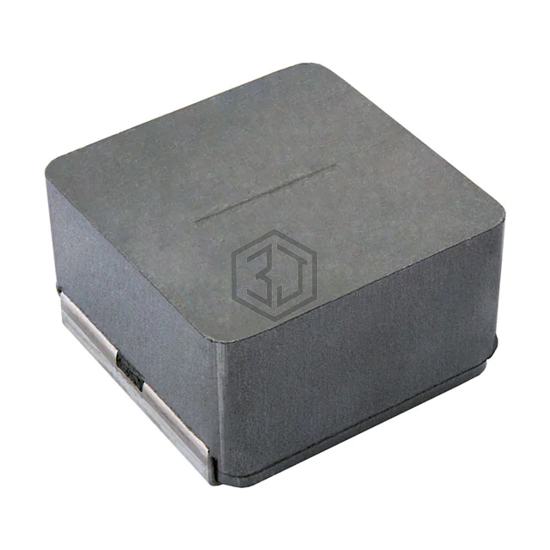

FIXED IND 4.7UH 47A 1.84MOHM SMD
IHLP8787MZER4R7M51 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 4.7UH 47A 1.84MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 47 A.
In Stock: 121
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 47 A |
| Current - Saturation (Isat) | 37A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.84mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10.2MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.885" L x 0.866" W (22.48mm x 22.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
