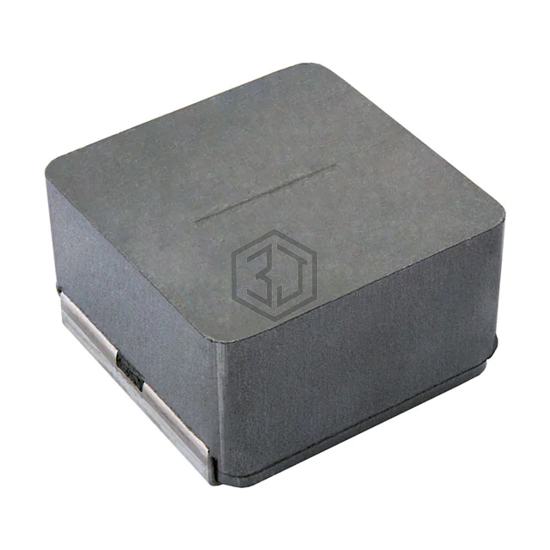

FIXED IND 1UH 69A 890U OHM SMD
IHLP8787MZER1R0M51 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 69A 890U OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 69 A.
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 69 A |
| Current - Saturation (Isat) | 71A |
| Shielding | Shielded |
| DC Resistance (DCR) | 890µOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 25.7MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.885" L x 0.866" W (22.48mm x 22.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
Submit your RFQ for IHLP8787MZER1R0M51 and get a quote within 24 hours.
