FIXED IND 0.56UH 61A 1.09 MOHM H

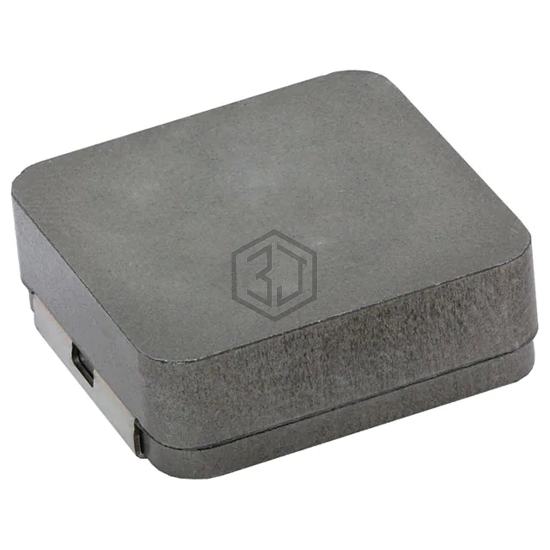

IHLP7575GZERR56M51 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 0.56UH 61A 1.09 MOHM H. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 61 A.
In Stock: 220
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 61 A |
| Current - Saturation (Isat) | 101A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.09mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.752" L x 0.750" W (19.10mm x 19.05mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for IHLP7575GZERR56M51 and get a quote within 24 hours.
