FIXED IND 1UH 53A 1.46 MOHM SMD

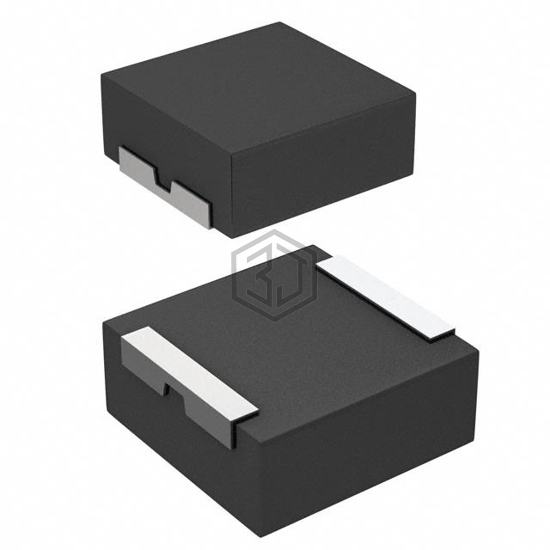

IHLP6767GZER1R0M51 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 53A 1.46 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 53 A.
In Stock: 5,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 53 A |
| Current - Saturation (Isat) | 42A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.46mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 35.5MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for IHLP6767GZER1R0M51 and get a quote within 24 hours.
