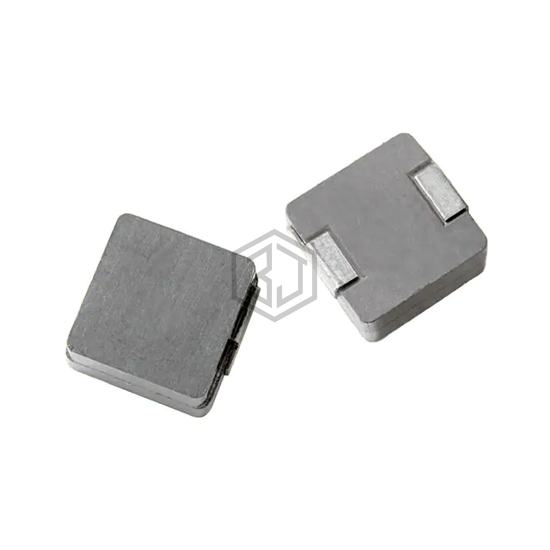

IHLP-5050FD-8A 22 20% ER E3
IHLP5050FDER220M8A is a Fixed Inductors manufactured by Vishay Dale. IHLP-5050FD-8A 22 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 9 A.
In Stock: 276
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 6.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 33.49mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6.6MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.530" L x 0.508" W (13.46mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) |
Submit your RFQ for IHLP5050FDER220M8A and get a quote within 24 hours.
