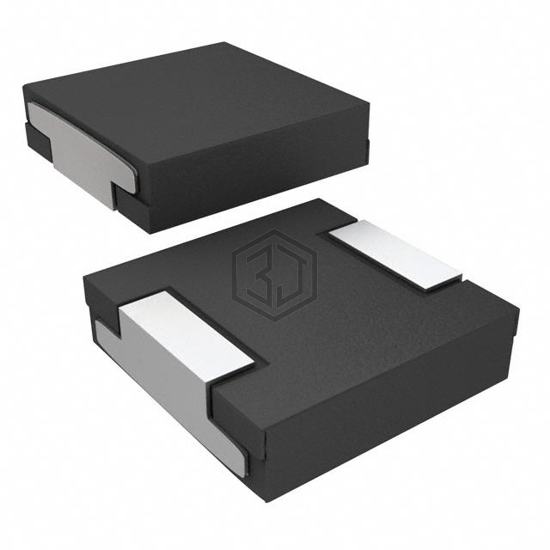

FIXED IND 330NH 42A 1.1 MOHM SMD
IHLP5050EZERR33M01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 330NH 42A 1.1 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 42 A.
In Stock: 290
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 42 A |
| Current - Saturation (Isat) | 80A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for IHLP5050EZERR33M01 and get a quote within 24 hours.
