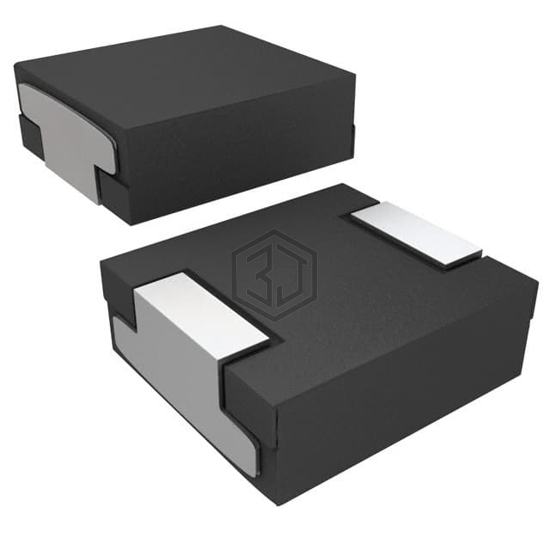

FIXED IND 560NH 27.5A 1.95 MOHM
IHLP4040DZERR56M01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 560NH 27.5A 1.95 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 27.5 A.
In Stock: 1,532
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 27.5 A |
| Current - Saturation (Isat) | 49A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
