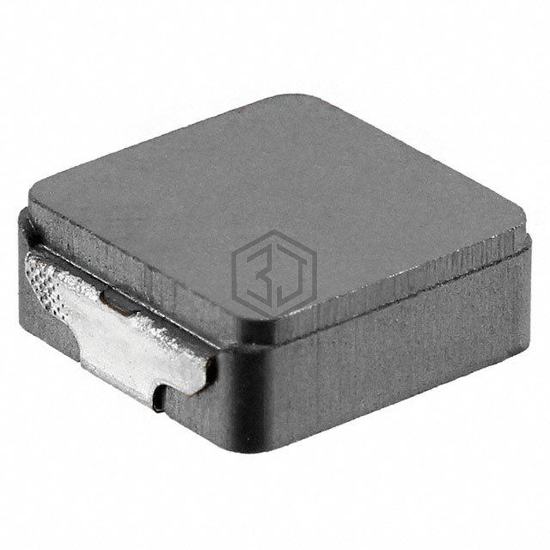

FIXED IND 240NH 33A 0.95MOHM SMD
IHLP4040DZERR24M11 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 240NH 33A 0.95MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 33 A.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 240 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 33 A |
| Current - Saturation (Isat) | 44A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for IHLP4040DZERR24M11 and get a quote within 24 hours.
