IHLP-4040DZ-8A 68 20% ER E3

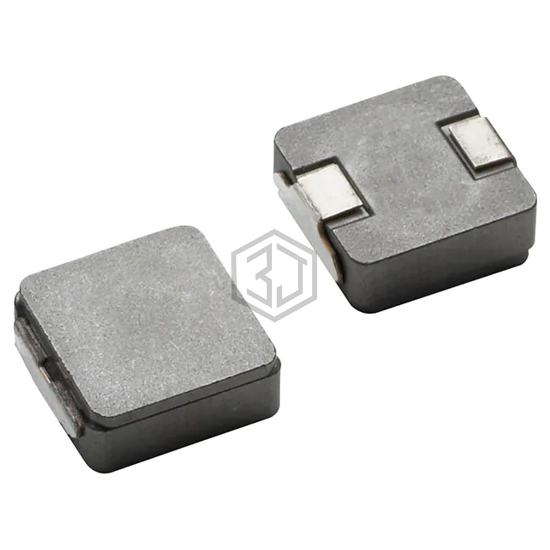

IHLP4040DZER680M8A is a Fixed Inductors manufactured by Vishay Dale. IHLP-4040DZ-8A 68 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 2.4 A.
In Stock: 719
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.4 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 252mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.02MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for IHLP4040DZER680M8A and get a quote within 24 hours.
