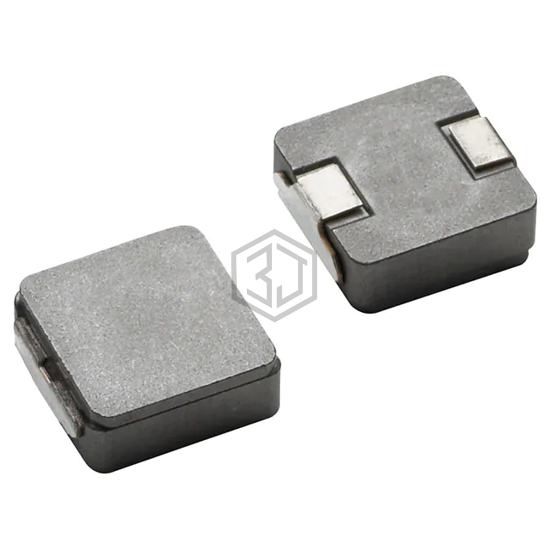

IHLP-4040DZ-8A 10 20% ER E3
IHLP4040DZER100M8A is a Fixed Inductors manufactured by Vishay Dale. IHLP-4040DZ-8A 10 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 6.5 A.
In Stock: 633
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 8.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 33.06mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 11.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for IHLP4040DZER100M8A and get a quote within 24 hours.
