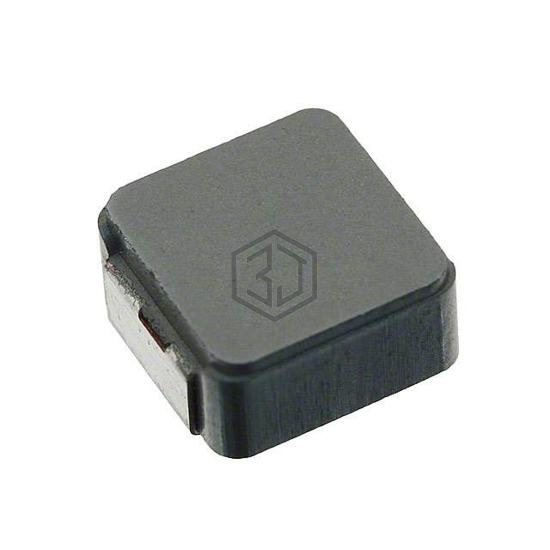

FIXED IND 1UH 19A 4.9 MOHM SMD
IHLP3232DZER1R0M51 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 19A 4.9 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 19 A.
In Stock: 1,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19 A |
| Current - Saturation (Isat) | 16.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 45MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.322" L x 0.322" W (8.18mm x 8.18mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for IHLP3232DZER1R0M51 and get a quote within 24 hours.
