FIXED IND 1UH 12A 8.45 MOHM SMD

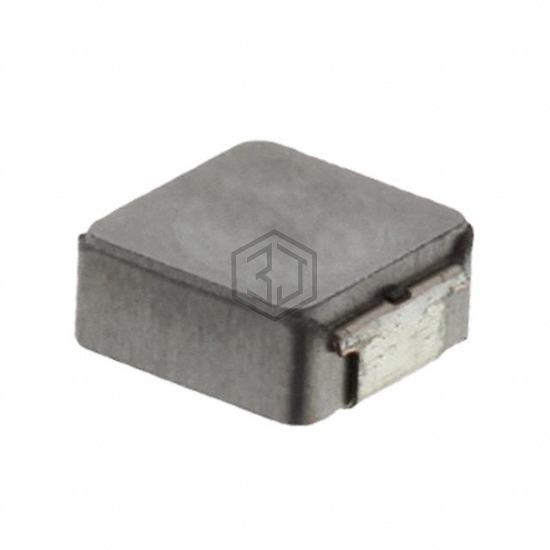

IHLP2525CZER1R0M8A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 12A 8.45 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 12 A.
In Stock: 4,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.45mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 59.1MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for IHLP2525CZER1R0M8A and get a quote within 24 hours.
