FIXED IND 2.2UH 3.4A 77.3MOHM SM

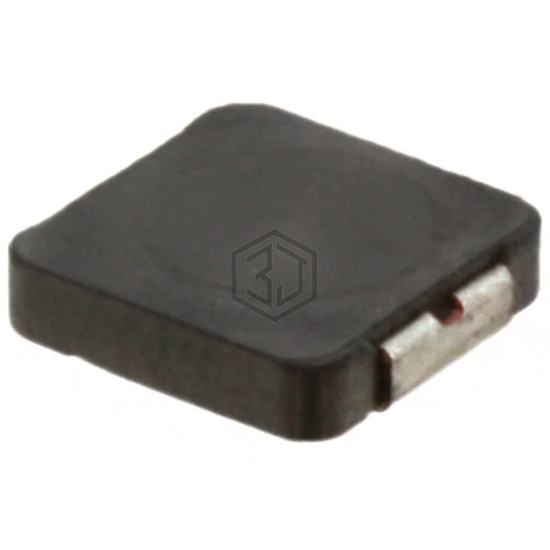

IHLP2020ABER2R2M01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 2.2UH 3.4A 77.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.4 A.
In Stock: 35,971
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 77.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 47MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for IHLP2020ABER2R2M01 and get a quote within 24 hours.
