FIXED IND 1UH 6.1A 28.5 MOHM SMD

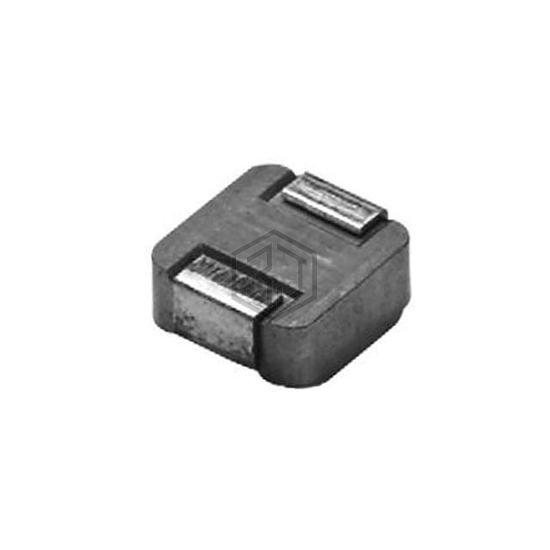

IHLP1616BZER1R0M0H is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 6.1A 28.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, 2 Lead, current rating (amps) 6.1 A.
In Stock: 7,895
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.1 A |
| Current - Saturation (Isat) | 10.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 28.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 91MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 2 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.160" L x 0.160" W (4.06mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for IHLP1616BZER1R0M0H and get a quote within 24 hours.
