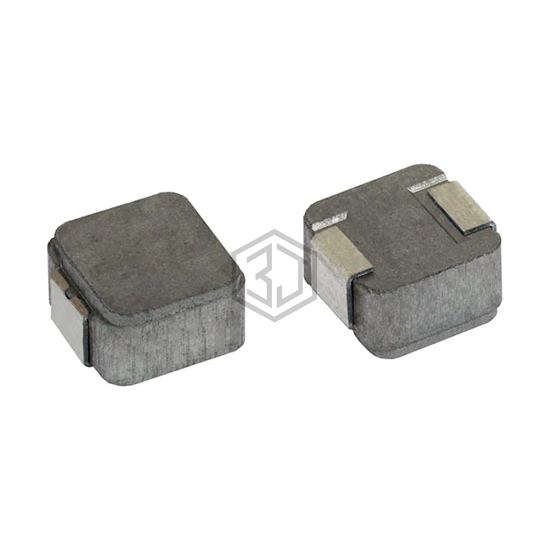

IHLP-1212BZ-A1 .47 20% EV E3
IHLP1212BZEVR47MA1 is a Fixed Inductors manufactured by Vishay Dale. IHLP-1212BZ-A1 .47 20% EV E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.29 A.
In Stock: 3,975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.29 A |
| Current - Saturation (Isat) | 9.28A |
| Shielding | Shielded |
| DC Resistance (DCR) | 25.08mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 148MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for IHLP1212BZEVR47MA1 and get a quote within 24 hours.
