FIXED IND 100NH 12.26A 6.95MOHM

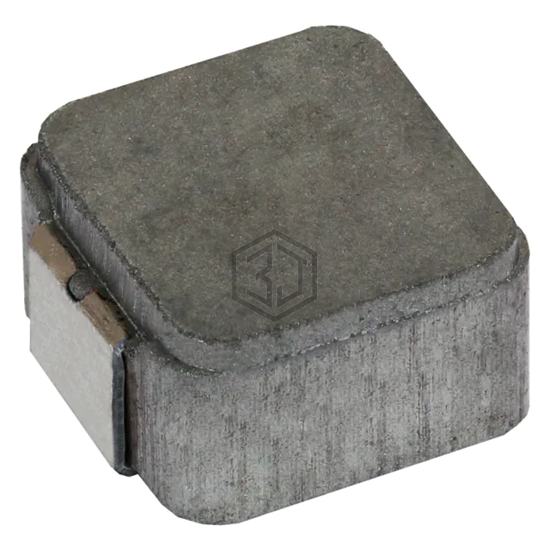

IHLP1212BZEVR10M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 100NH 12.26A 6.95MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 12.26 A.
In Stock: 6,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12.26 A |
| Current - Saturation (Isat) | 13.46A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 380MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for IHLP1212BZEVR10M5A and get a quote within 24 hours.
