IHLP-1212BZ-A1 2.2 20% EV E3

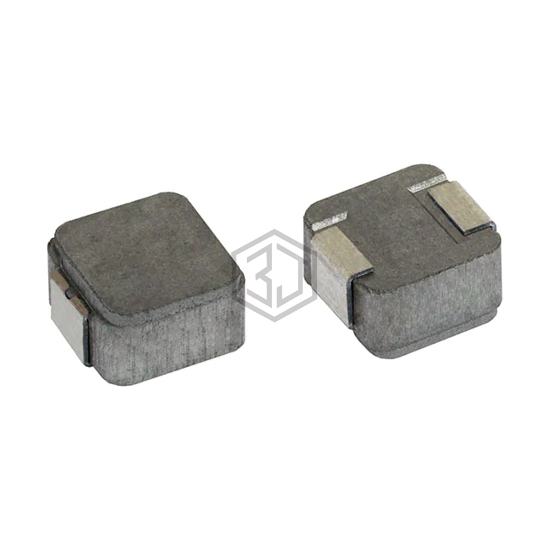

IHLP1212BZEV2R2MA1 is a Fixed Inductors manufactured by Vishay Dale. IHLP-1212BZ-A1 2.2 20% EV E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.55 A.
In Stock: 3,985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.55 A |
| Current - Saturation (Isat) | 4.93A |
| Shielding | Shielded |
| DC Resistance (DCR) | 80.37mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for IHLP1212BZEV2R2MA1 and get a quote within 24 hours.
