FIXED IND 2.2UH 3A 46 MOHM SMD

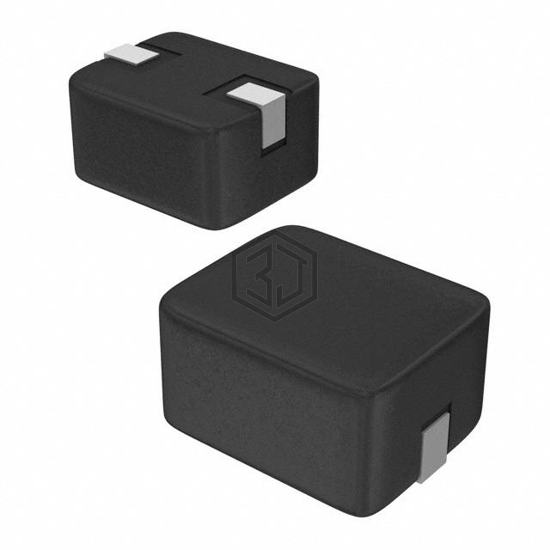

IHLP1212BZER2R2M11 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 2.2UH 3A 46 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3 A.
In Stock: 63,887
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | 3.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 46mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 55MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.144" L x 0.118" W (3.65mm x 3.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for IHLP1212BZER2R2M11 and get a quote within 24 hours.
