FIXED IND 220NH 7.72A 14.87MOHM

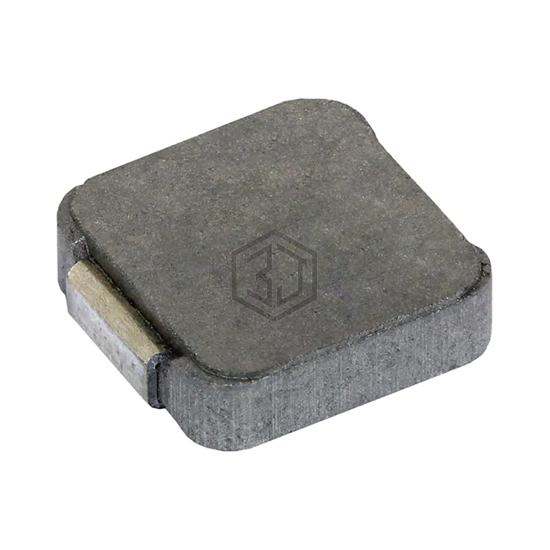

IHLP1212AZEVR22M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 220NH 7.72A 14.87MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 7.72 A.
In Stock: 3,968
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.72 A |
| Current - Saturation (Isat) | 5.88A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14.87mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 225MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for IHLP1212AZEVR22M5A and get a quote within 24 hours.
