IHLP-1212AB-A1 .15 20% EV E3

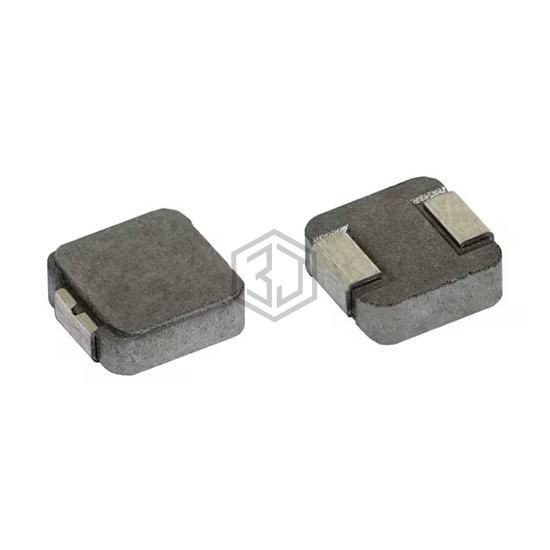

IHLP1212ABEVR15MA1 is a Fixed Inductors manufactured by Vishay Dale. IHLP-1212AB-A1 .15 20% EV E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.06 A.
In Stock: 3,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.06 A |
| Current - Saturation (Isat) | 13.13A |
| Shielding | Shielded |
| DC Resistance (DCR) | 12.14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 320MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for IHLP1212ABEVR15MA1 and get a quote within 24 hours.
